DC Inverter Mma, Tig & Mig Welding Machines

DC Inverter Mma, Tig & Mig Welding Machines

SKU: N/A Categories: All, MIG, MMA, TIG, Welding Machine

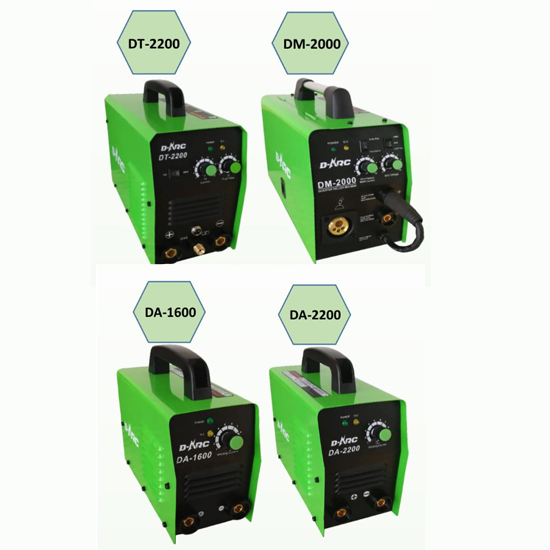

DA-1600 & DA-2200

High reliable IGBT design with 18KHz frequency.
Integrated one PCB board design.
Suitable for thickness from 1 to 10mm.
Can be used with 1.6 to 4.0mm diameter.

DT-2200

An ideal portable dual function machine.
High reliability when used within welding current.
Especially designed for sheet metal and stainless steel welding like kitchen equipment, railings, gates, and others.

DM-2000

Stable welding arc ensure minimal spatter, deep welding penetration and great welding seam.
A new design in exhaust fan duct design thus higher reliability.
Widely used in thin plate welding field such as automobile, motorcycle accessories, steel wood furniture etc.

Model

Clear

Description

MODEL	DA-1600	DA-2200	DT-2200	DM-2000
Function	MMA/SMAW	MMA/SMAW	TIG/MMA	MIG(MAG)/MMA
Input Voltage / Frequency	1PH 240V 50/60Hz	1PH 240V 50/60Hz	1PH 240V 50/60Hz	1PH 240V 50/60Hz
Rated Input Capacity (KVA)	4.6	6.5	5.6	7.4
Rated No-Load Voltage (V)	~	~	56	50
Output Voltage Range (V)	24.8	26.4	16.4	22.0
Output Current Range (A)	20-120	20-160	20-160	30-160
Rated Duty Cycle (%)	40	40	60	40
Efficiency (%)	0.85	0.85	0.85	0.85
Power Factor	0.76	0.76	0.76	0.93
Insulation Class	B	B	F	F
Protection Class	IP21S	IP21S	IP23	IP23
Ignite Mode	~	~	H.F	~
Dimension (MM)	260x110x180	290x120x200	350x150x230	390x160x240
Gross Weight (KG)	4	5	6	11
