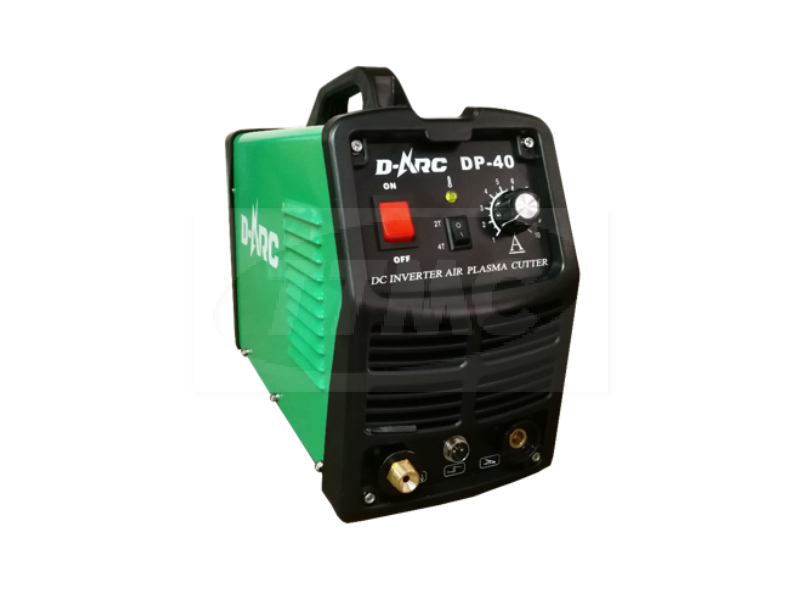

D-ARC DP-40 PLASMA CUTTER
- The plasma cutting process is 1.8 times faster and more efficient compared to oxy acetylene cutting process.
- More cost saving for mild steel cuts below 12mm.
- Can cut multiple type of steel eg: steel, stainless steel, alloy steel, copper, aluminium.
- Ease of operation.
- Can be fitted with semi automatic line cutting machine for better improved cut quality.
Description
| MODEL | DP-40 |
|---|---|
| Input Voltage / Frequency | 1PH 240V 50/60Hz |
| Rated Input Capacity KVA | 4.8 |
| Rated No-Load Voltage V | 230 |
| Rated Output Voltage V | 96 |
| Output Current Range A | 20-40 |
| Duty Cycle % | 60 |
| Efficiency % | 85 |
| Max. Cutting Thickness mm | 10 |
| Power Factor | 0.93 |
| Compressed Air Pressure KG/cm2 | 4.0-5.0 |
| Insulation Class | F |
| Protection Class | IP23 |
| Dimension MM | 380 x 178 x 295 |
| Gross Weight KG | 8 |
